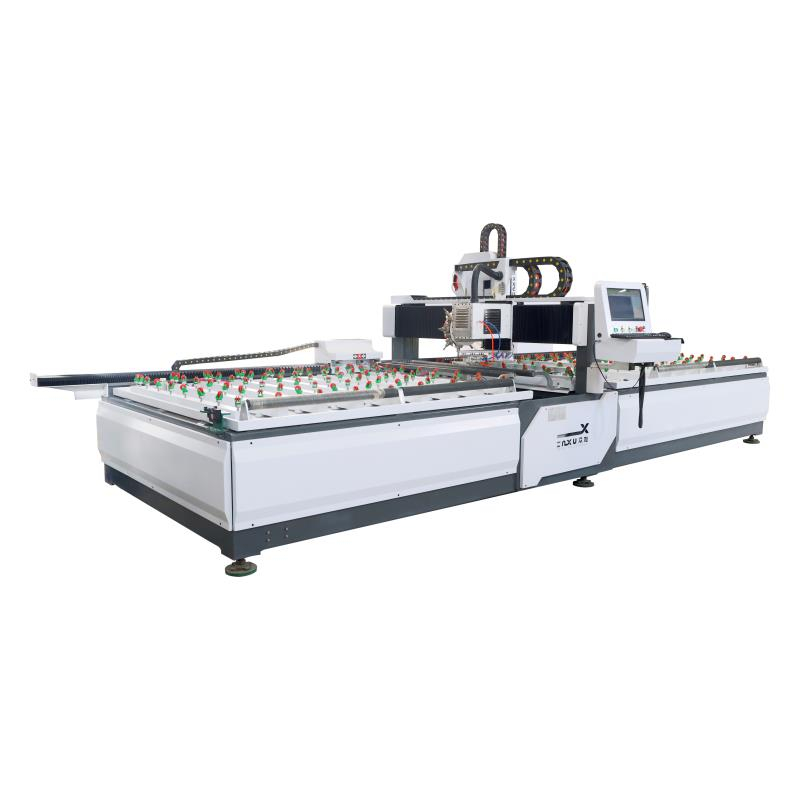

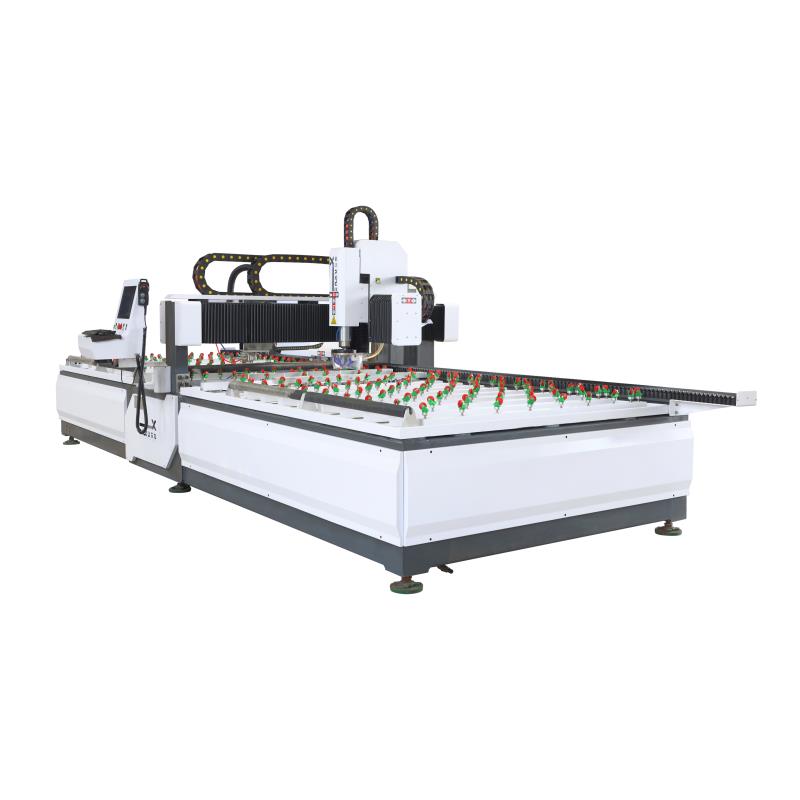

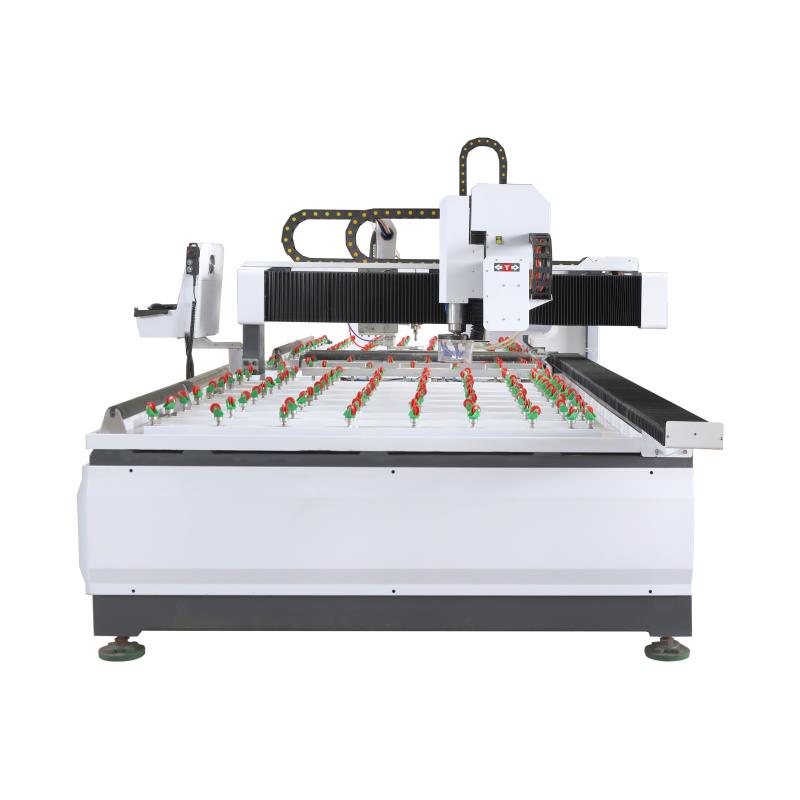

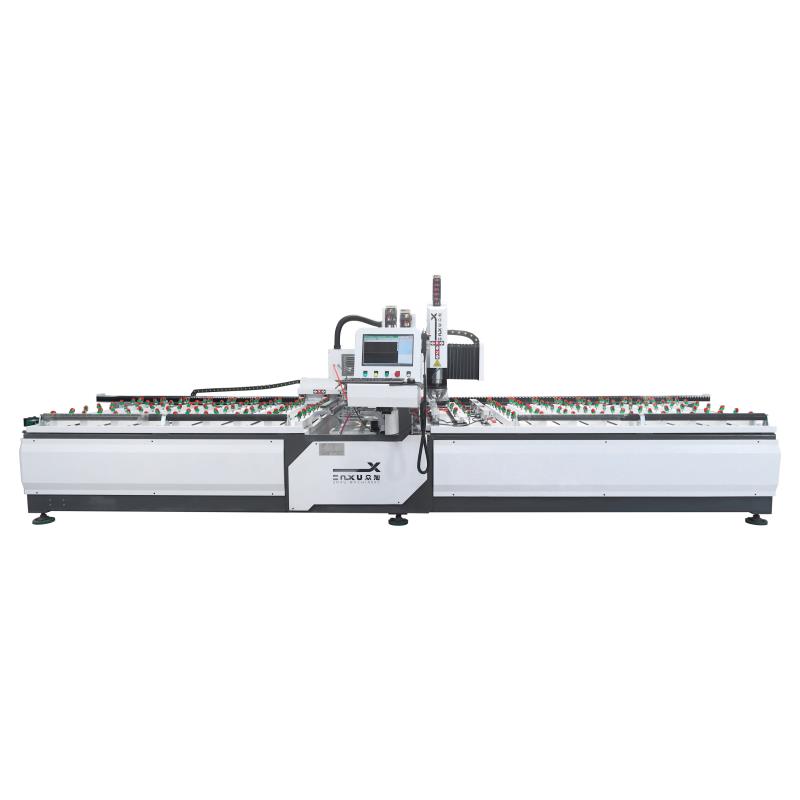

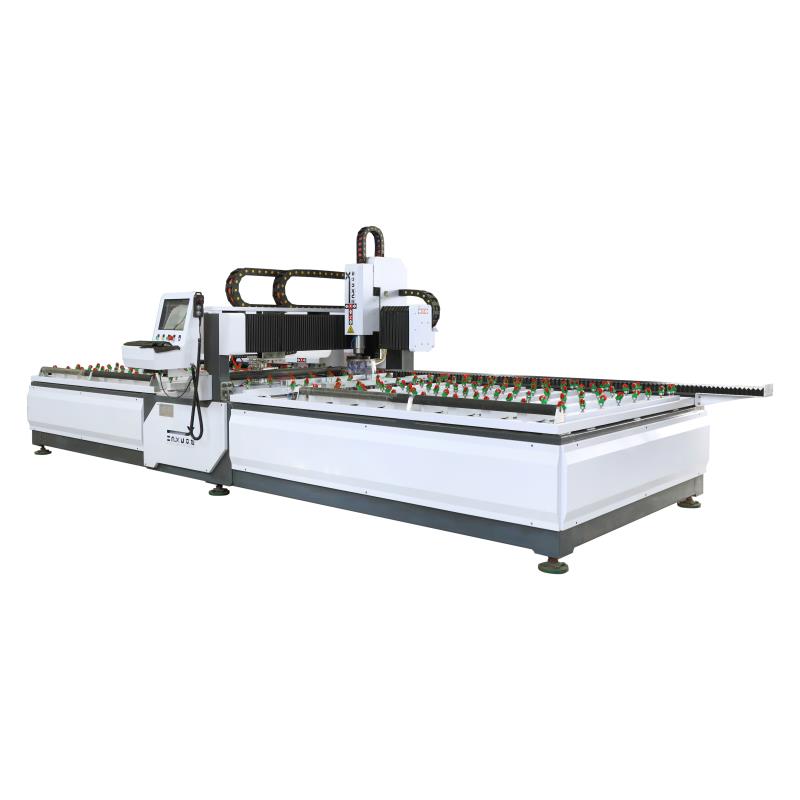

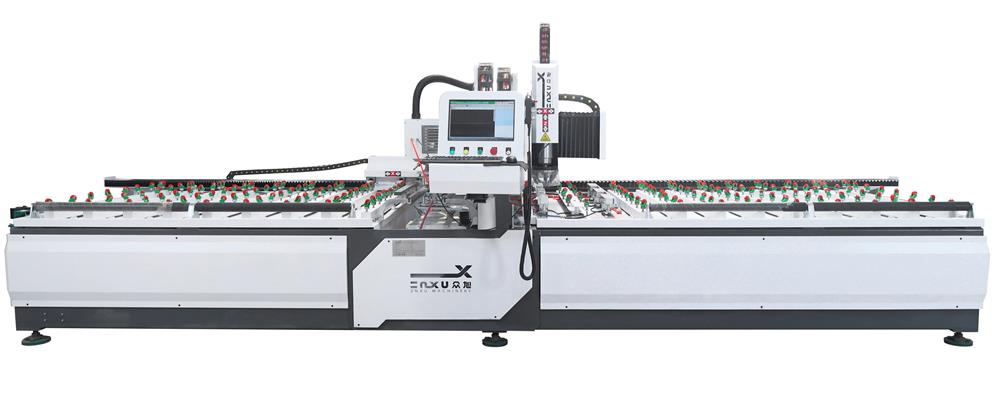

ZX68D/ZX68W-2025 Luban Lathe CNC Drilling And Milling Machine
This machine is our company's latest glass processing equipment, integrating two mechanical structures: a glass drilling machine and a glass milling machine.
* A proprietary 12-axis control system provides seamless control of both glass drilling and milling.
* This machine utilizes a gantry-style upper and lower drill and eight turrets for CNC drilling, reaming ( different shape of holes requirement like triangle, square, oval etc, all kinds of different shape of holes you want to process), and milling. Path editing is simple, and drilling, reaming, and milling are all integrated. Path editing is flexible, library access is available, and external DXF and DGW files can be accepted. The system comes with built-in drawing software, and its user-friendly design makes operation even simpler.
* Pneumatic support and proximity priority minimize idle strokes, saving processing time.
* Drilling utilizes universal consumables, significantly reducing drilling costs.
* The milling section utilizes a T-shaped mechanical frame, offering a compact and flexible structure. The transmission mechanism utilizes a pneumatic cylinder-type pressurized support and transmission mechanism, ensuring stable and precise operation, eliminating unnecessary steps.
* This machine, covered by multiple patents, is suitable for deep processing of glass, including drilling, milling, notching, and various shaping processes.
* This machine offers modular expansion options and PLC control for convenient external coordination, allowing for standalone operation. It can also be connected to various equipment such as online loading tables, robots, glass washing machines, etc. to achieve online production.

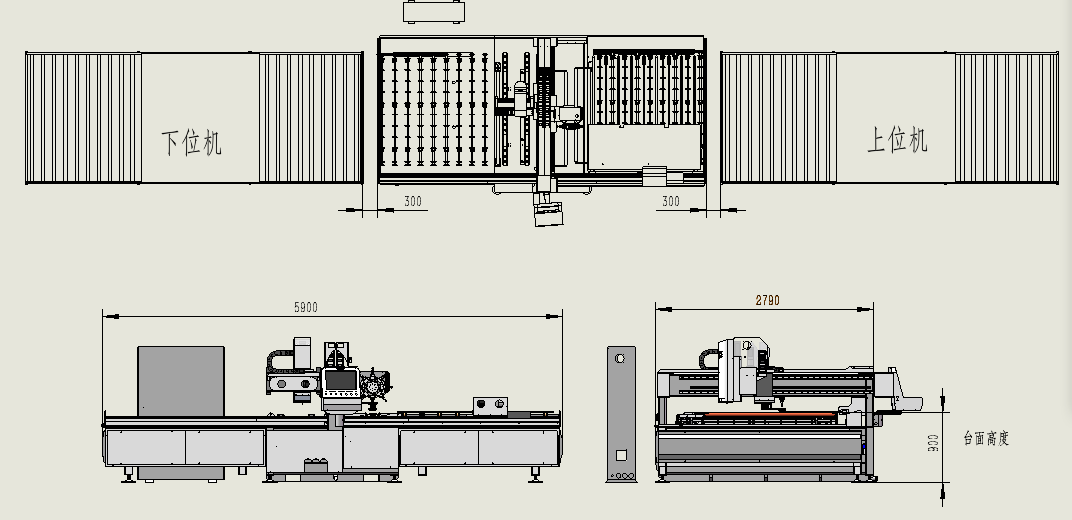

1.Layout：
1.1.ZX68D-2025 (Processing Line)

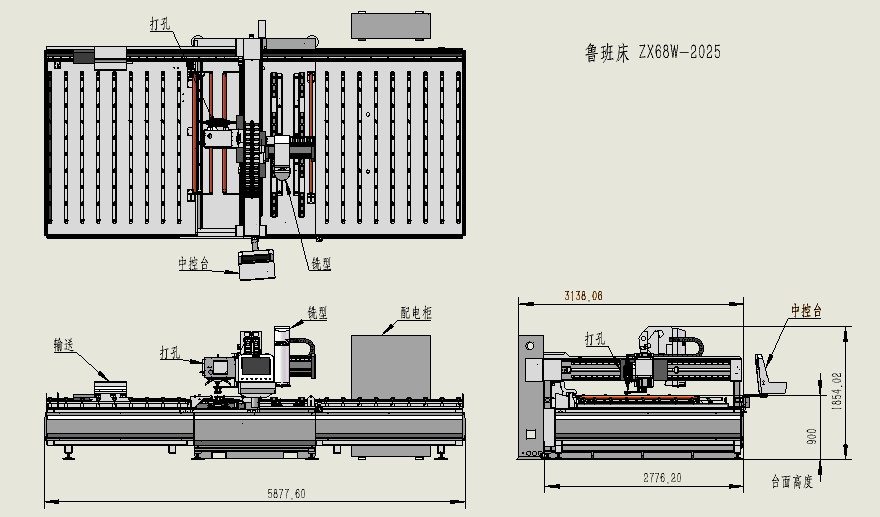

1.2.ZX68W-2025 （Use Alone)
2.Technical requirements&Configuration parameter
2.1.Technical parameters
XY axis moving range | X Axis | 0--4000 | [mm] |
Y Axis Milling Drilling | 0-2000 0-1800 | [mm] | |
Max Moving Speed | X Y | 0-30 0-20 | m m |
Milling Spindle RPM | 5000-22000 | r/min | |
Drilling Spindle RPM | 1000-4000 | r/min | |
Processing speed | Drilling (Based on Drillers’Parameter) Milling(Based on Cutters’ Parameter) | 0-40 0-15 | mm/s mm/s |
Holes’ spacing accuracy | X Y | ±0.3mm | mm |
Diagonal precision | ±0.3mm | mm | |
Milling precision | ±0.3mm | mm |
Glass diameter | φ6 –φ50 | [mm] | ||
Qty of installed drill bits | 8 | 组pairs | ||
Qty of installed milling cutter | 1 | Pcs | ||
Tools Changing method | Drilling | 8 Tool magazine | Automatic | |
Milling | Pneumatic | Manual ( button press) | ||
Max Glass size(L*W) Milling Drilling | 2500 X2000 [mm] 2500x1800 （mm） | |||
Mini Glass size(L*W) 500 X200 [mm] | ||||
TOOLS DATE | Milling | Sintering cutter | Handle 12 1/2 | |
Drilling | Tapered shank cutter | |||
Thickness | Milling | 4-14 | mm | |
Drilling | 4-18 | mm | ||
2.2.Drilling component configuration parameters
Item：Material、Component configuration | |||
No. | Supplier | ||
1 | Frame | Material | 45# A3 sheet and tubing, 1060 aluminum alloy |
Handling method | 回火处理 时效 Tempering treatment and aging properties | ||
2 | Ball screw | Manufacturer | Taiwan Dinghan |
Linear guide | Manufacturer | Taiwan Dinghan | |
3 | Milling Spindle | 7.5KW | JST |
4 | Vacuum pump | 2.2KW | BOSHAN BAIYUAN |
Star Gear Reducer | 80 | Golden Goose | |
Divider | DTN200-18 | Yongkun | |
5 | Hand wheel | Binary 12-axis | Far-sighted |
6 | Control system | GEN-016-G-0 | 12 axis controller |
grindcnc_pro_x64_v3.0.2.17_dog | Latest Version | ||
7 | Control mode | EtherCAT | |
8 | Connecting method | EtherCAT I/O ERP | |
9 | Files format | DWG DXF PLT | |
10 | Reading Method | Image Gallery (Scan QR Code) | |
Item：Electroniccontrolcomponent | |||
No. | Supplier | ||
1 | VVVF(variable voltage and variable frequency) | Manufacturer | Delta |
Specification | 7.5KW380V | ||
Servo Driver | Manufacturer | 台达Delta | |
Specification | 0.75KW/1.0KW | ||
2 | Contactor | Manufacturer | Siemens |
Specification | AC220V | ||
3 | DCelectrical source | Manufacturer | Siemens |
Specification | AC220V-DC24V | ||
4 | Controller | Manufacturer | ZhongXu |
Specification | LBC_2 | ||
5 | Cable | Manufacturer | Lunuo ,MadeinChina |
6 | Drag chain cable Limit switch | Manufacturer | shandHebeiCangzhou,MadeinChina |
Manufacturer | OMRON | ||
7 | Control screen | Manufacturer | Industrialcomputer |
8 | Sensor | Manufacturer | OMRON Schneider |
2.3.Water and electricity
Totla Power | 16.5KW | |
Input power | 380V 50HZ | Three-phase five-wire 6² cable |
Input air pressure | 0.6-0.7 mpa | φ10mm Input air pipe |
Input vacuum pressure | -0.6- -0.8 mpa | Φ 16mm Input air pipe |
Gas consumption | 3³/h | |
Water consumption | 33L/min |
2.4.Machine Drilling/Milling Processing Range
XY axis moving range | Milling xy | 2000x2500 [mm] |
Drilling XY | 2600x1800 [mm] | |
Clamping Conveyor X | 45000 [mm] |
Milling Function :

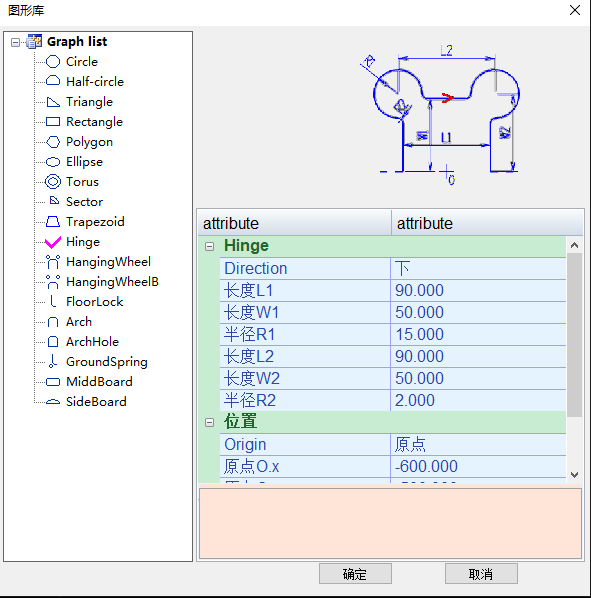

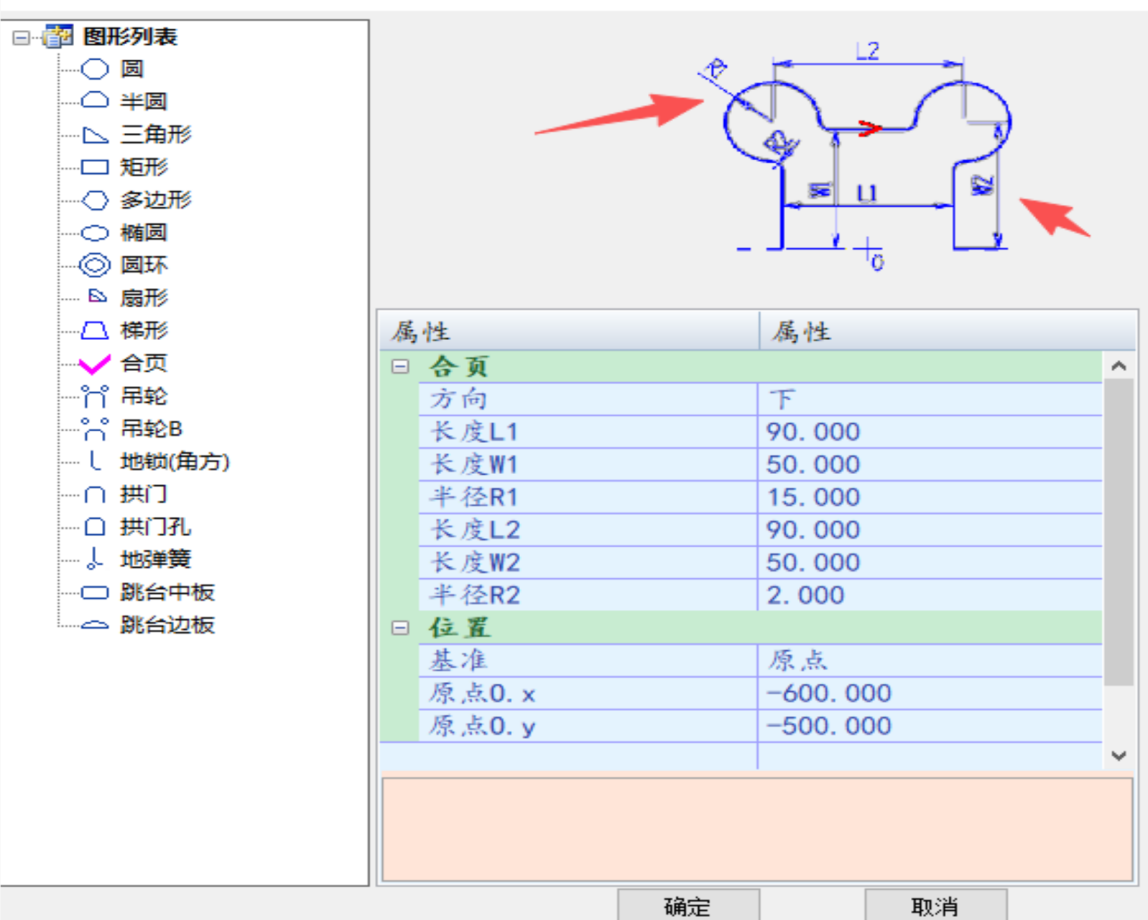

1.The system comes with a variety of image libraries that can be accessed.
2.The system comes with DXF machining templates.
3.The system automatically identifies the diameter of circles in the drawing and matches cutting tools from the library.

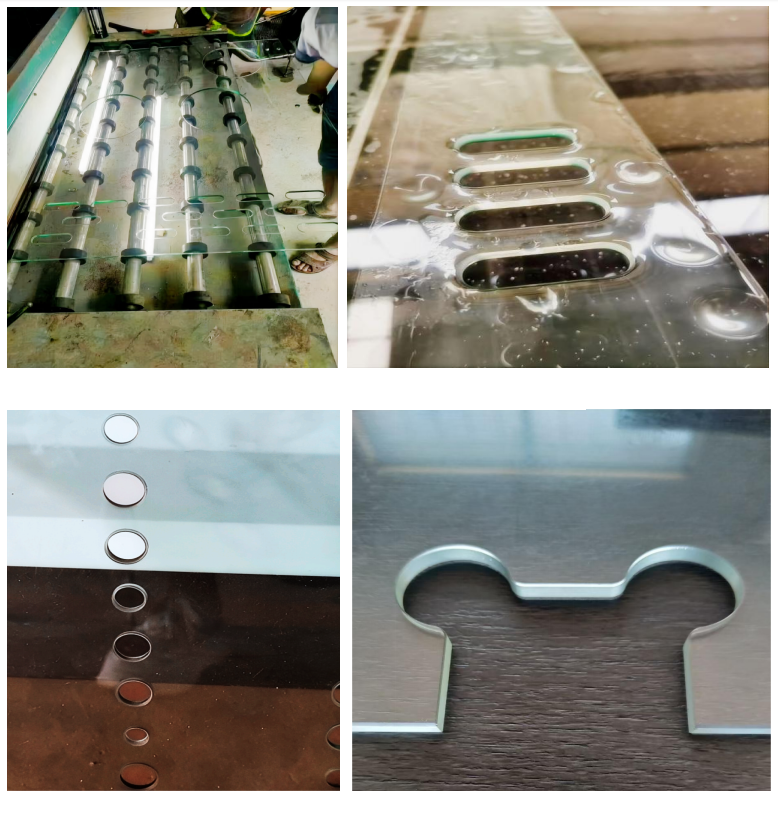

2.6.Examples of equipmentmilling graphics:(Examplesofequipmentmillinggraphics)
