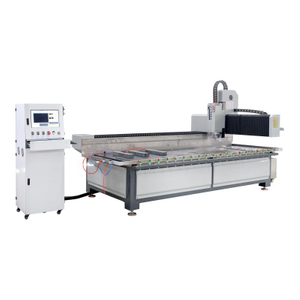

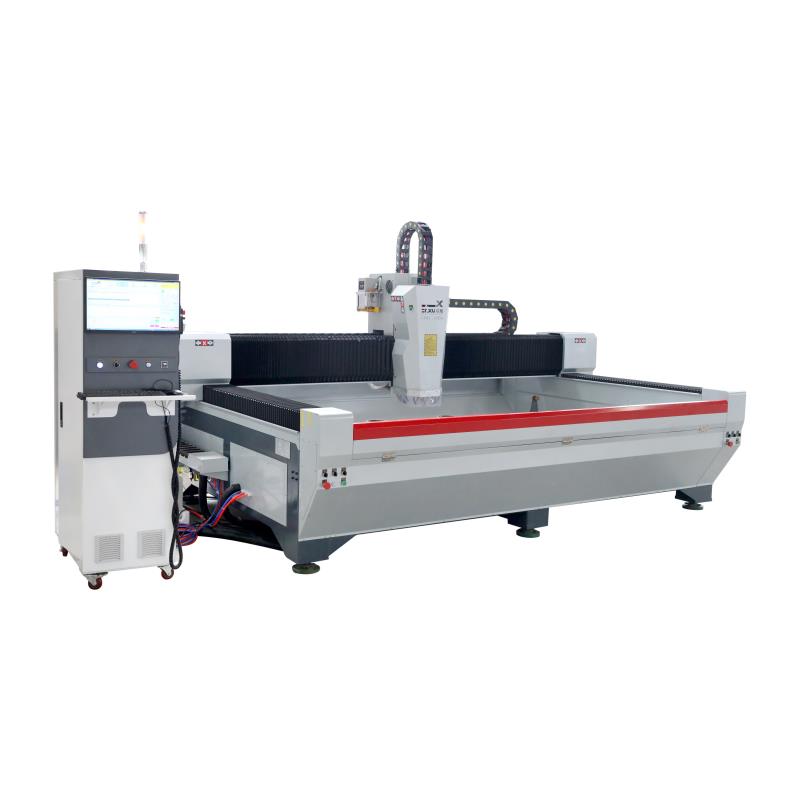

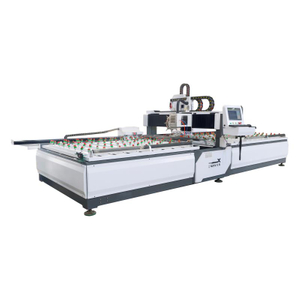

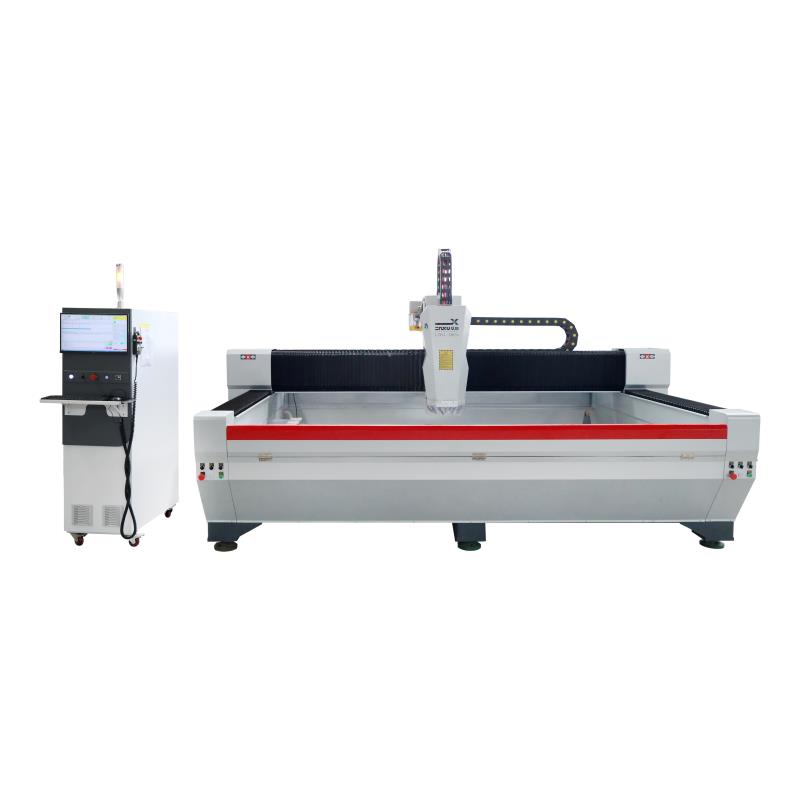

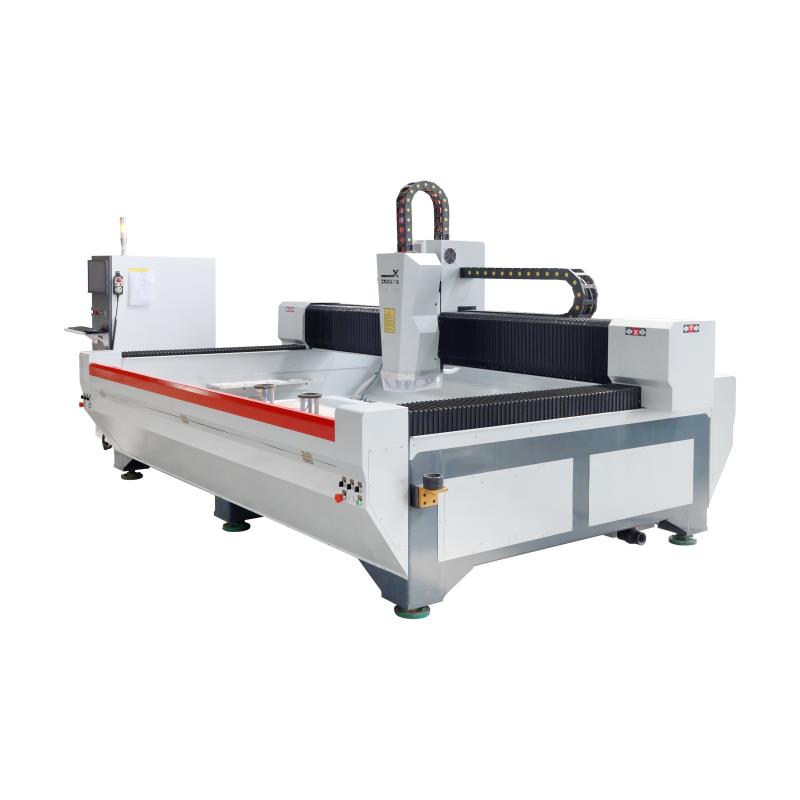

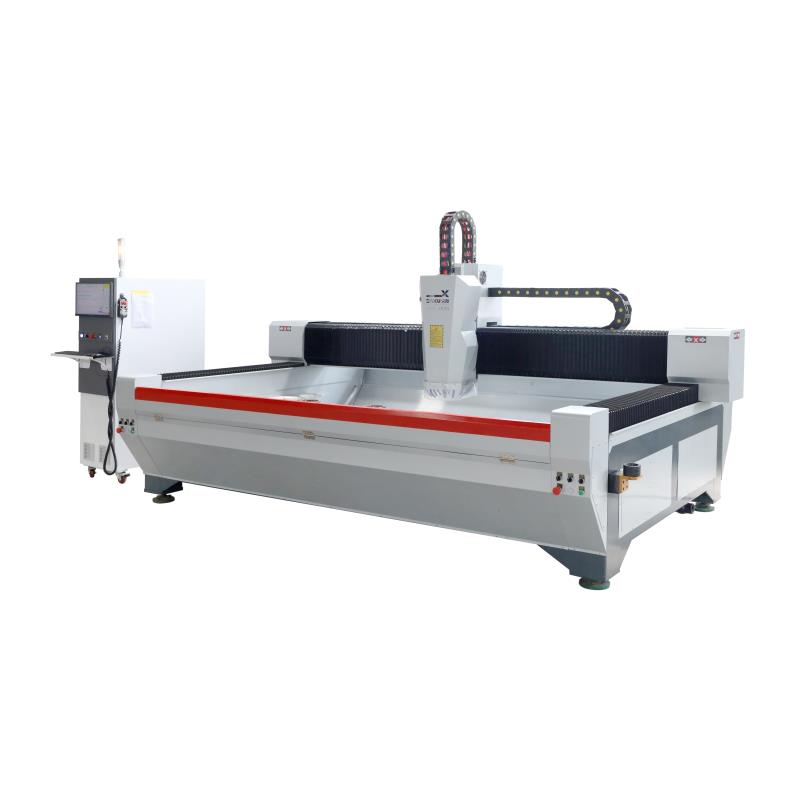

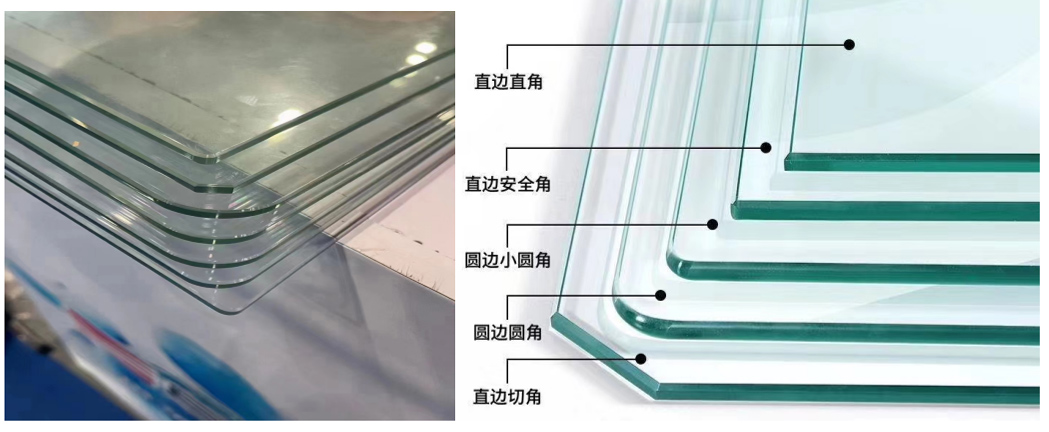

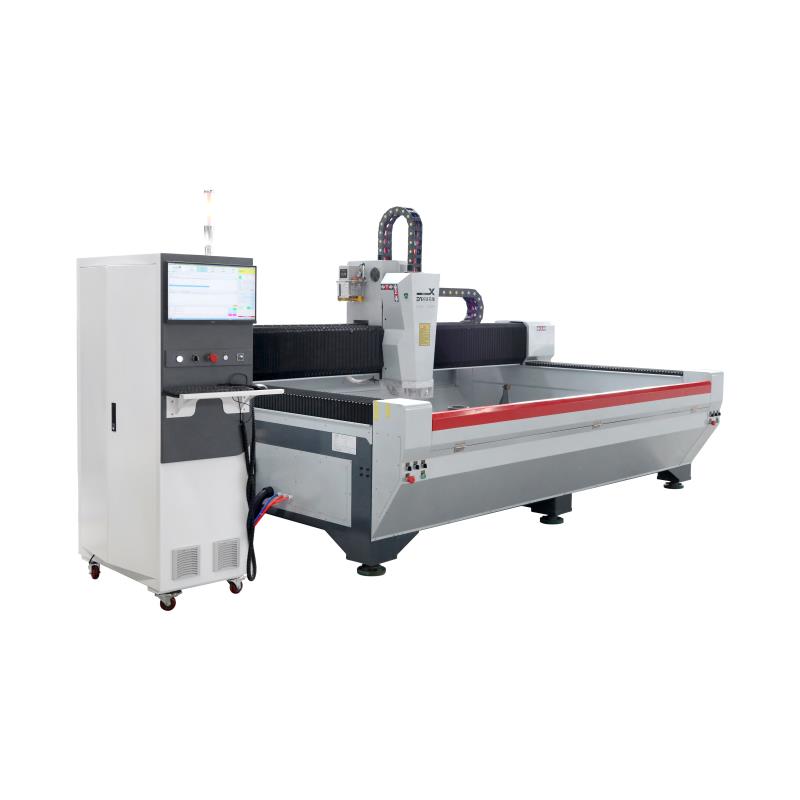

The CNC glass machining center manufactured by our company is particularly suitable for edge grinding, polishing, and chamfering of various shapes of glass, including decorative glass, appliance panel glass, furniture tabletop glass, automotive glass, and smart glass mirrors etc.
ZNXU CNC glass processing centers are specifically designed for glass processing by using a three-axis linkage mechanism to control the forward, backward, left, right, and up/down movement of the motor head.
The base, columns, and beams are all made of thickened steel and have undergone quenching treatment to ensure the long-term stability of the equipment and prevent deformation during prolonged use.
The drive system uses servo motor, and the sliding mechanism employs imported high-precision linear guides, along with a slider and ball screw, to ensure the required precision during operation.
The design philosophy of this machine is to provide economical and efficient equipment for glass deep processing enterprises, prioritizing structural stability, integrating functions as much as possible, and simplifying operation as much as possible.
Features:
* Fully automated glass machining center
* Rough edging, fine edging, polishing
* Glass drilling, glass milling
* Automatic spindle cooling
* Automatic central lubrication system
* Automatic tool calibration system
* Compact design, space-saving
* Superior solution for the production of glass doors, mirrors, furniture glass, appliance glass, and automotive glass
* Extremely robust structural design
* Optional automatic tool changer
MODEL | ZXX-C2010 | ZXX-C2515 | ZXX-C3015 | ZXX-C3020 |
Machine Bed | Thickened steel is processed and quenched. | |||
Internal of machine structure | Half Cover/Waterproof design, 304 stainless steel outer cover and inner cover | |||
Control System | QIXIN SYSTEM (ZNXU Special designed) | |||
Main Spindle | DIAM θ150 Cooling Method：Water Cooling RPM：15000（adjustable） POWER：15KW | |||
Mach. Size (mm) | 3700*2150*2200 | 4100×2650×2200 | 4600*3150*2200 | 4600*3650*2200 |
Pkg Size （mm) | 3700×2200×2200 | 4100×2250×2200 | 4600*2250*2200 | 4600*2600*2200 |
N.W (kg) | 2500KG | 2750KG | 3450KG | 3800KG |
Table Size(mm) | 2000*1000 | 2500*1500 | 3000*1500 | 3000*2000 |
Working size(mm) | 2000*1000*315 | 2500*1500*315 | 3000*1500*315 | 3000*2000*315 |
Mini Size | 180×180mm（for smaller size can be customized sucker） | |||
（φ100） Max Grinding Size D100 | 2000*900mm | 2500*1400mm | 3000*1400mm | 3000*1900mm |
MAX Milling Size | 2000*1000mm | 2500*1500mm | 3000*1500mm | 3000*2000mm |
Processing speed | Grinding≤12M/MIN, Polishing <6M/MIN | |||
Milling Speed | 0-600mm/min | |||
Table Material | Before milling 25mm aluminum plate | |||
Repeat Positioning accuracy | 0.02mm | |||
Processing accuracy | ±0.1mm | |||
Servo and Drive | Delta | |||
Electrical appliances | SIEMENS | |||
Limit Switch | OMRON | |||
Frequency converter | SINEE | |||
Power requirement | AC/380V/50Hz/24kW, three-phase (Voltage conversion between different countries can be achieved by adding a transformer) | |||
Other models | For others like 3025,4020,4030 can be customized | |||

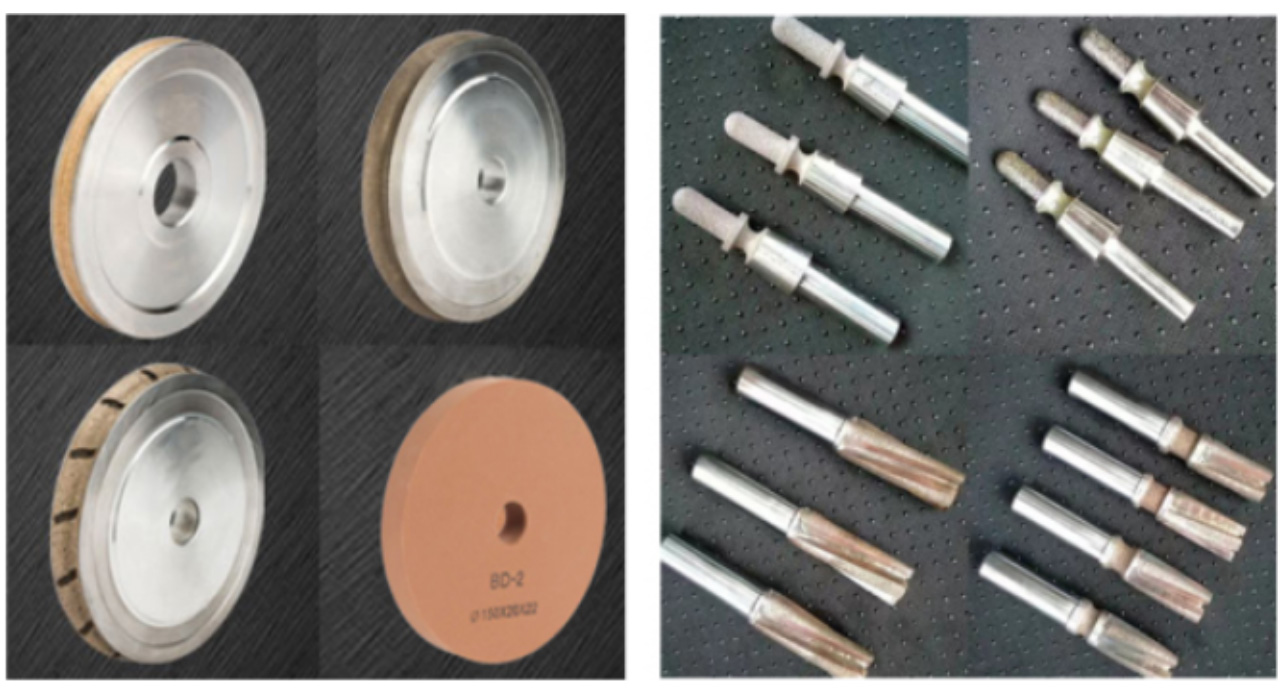

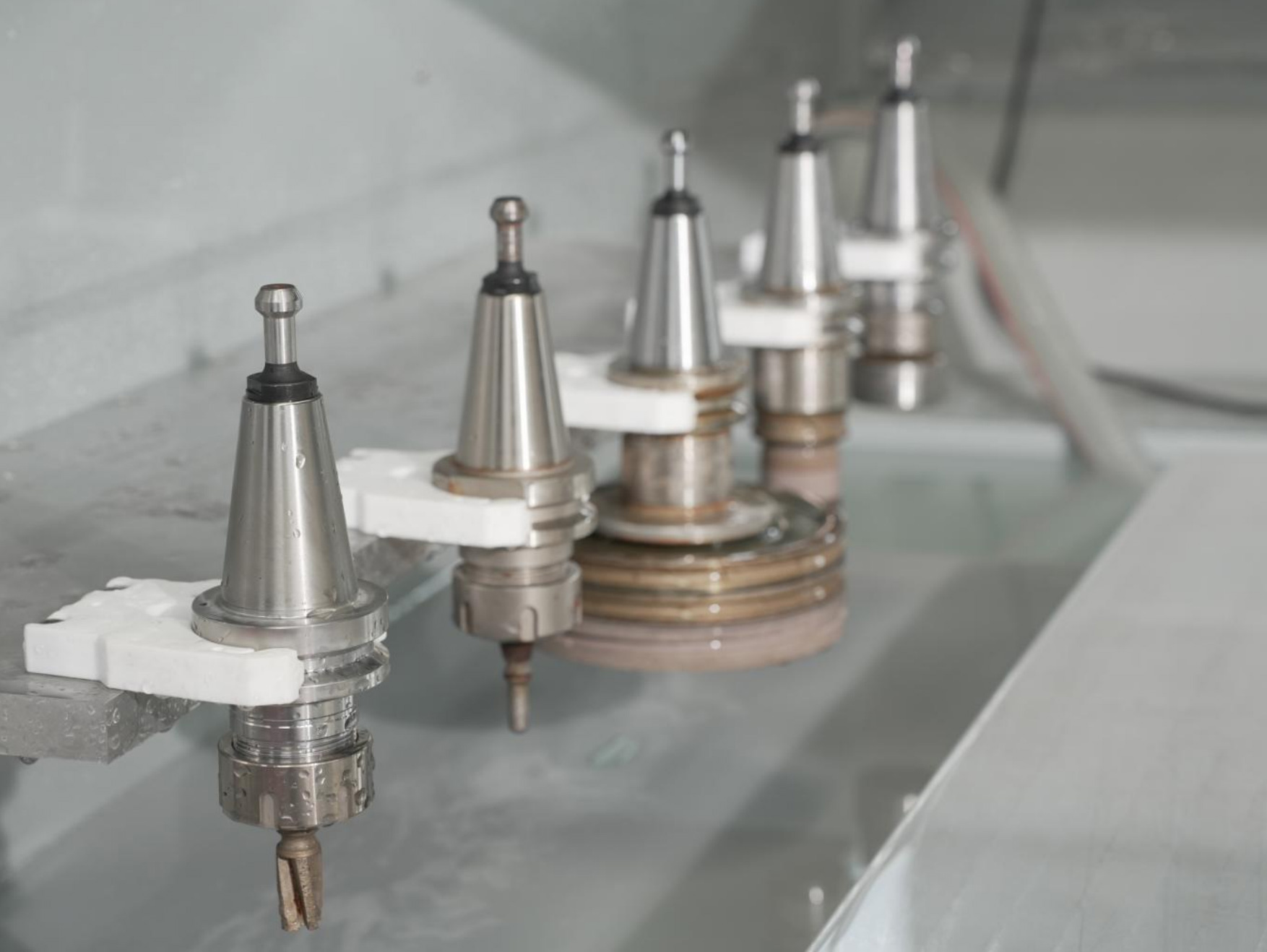

AUTOMATIC TOOL CHANGER
This machining center comes standard with an automatic tool magazine and an ATC (Automatic Tool Changer) system, capable of stably storing multiple tool specifications and supporting multi-process composite machining such as milling, cutting, grinding, chamfering, and polishing. The machine tool intelligently manages tool numbers and positions through a CNC system, ensuring fast and precise tool changes without any manual intervention.

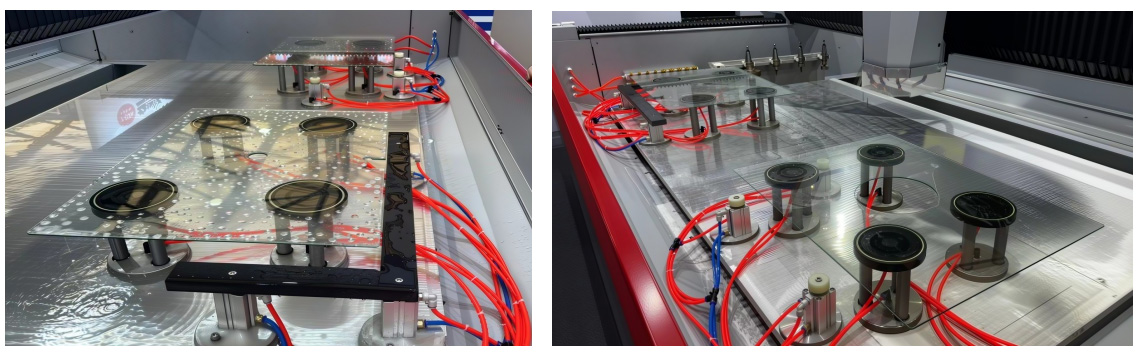

DOUBLE STATION PROCESSING
Two glass can be loaded at the same time. By this feature after the first glass processing the machine automatically reposition itself for second glass. Thanks to this feature time losses

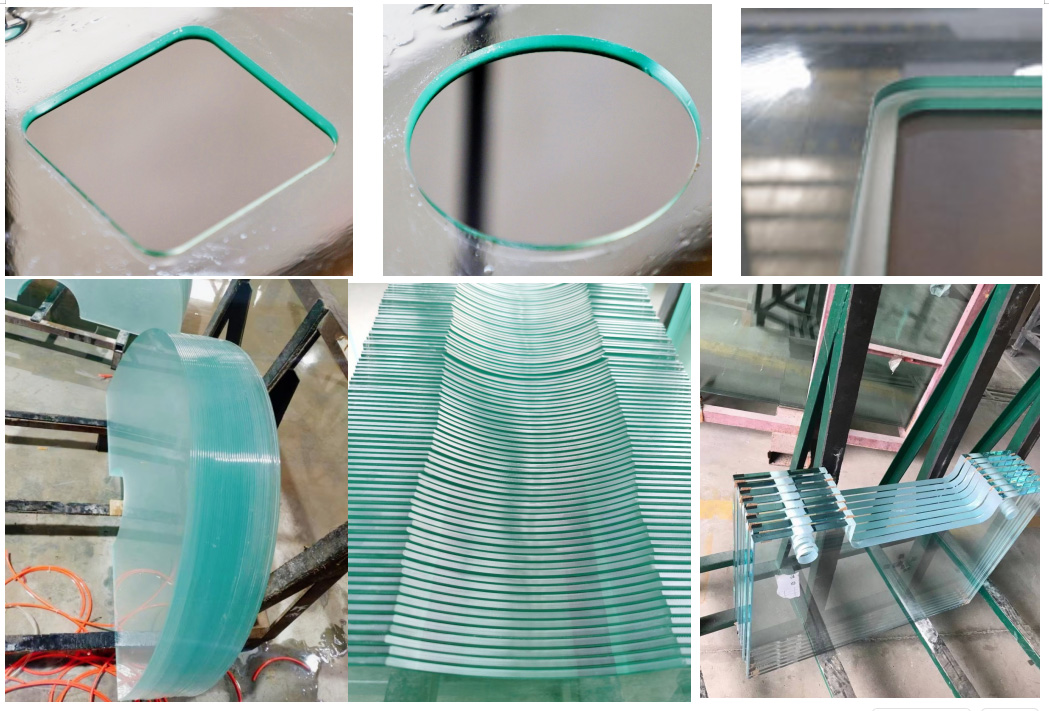

MULTIFUNCTION PROCESSING
With its multifunction glass processing feature our machine can do glass edging, milling, drilling and polishing automatically in one cycle for flat and shaped glasses. This feature is very useful for manufacturing of glass doors, furniture glasses, shower glass doors etc.
